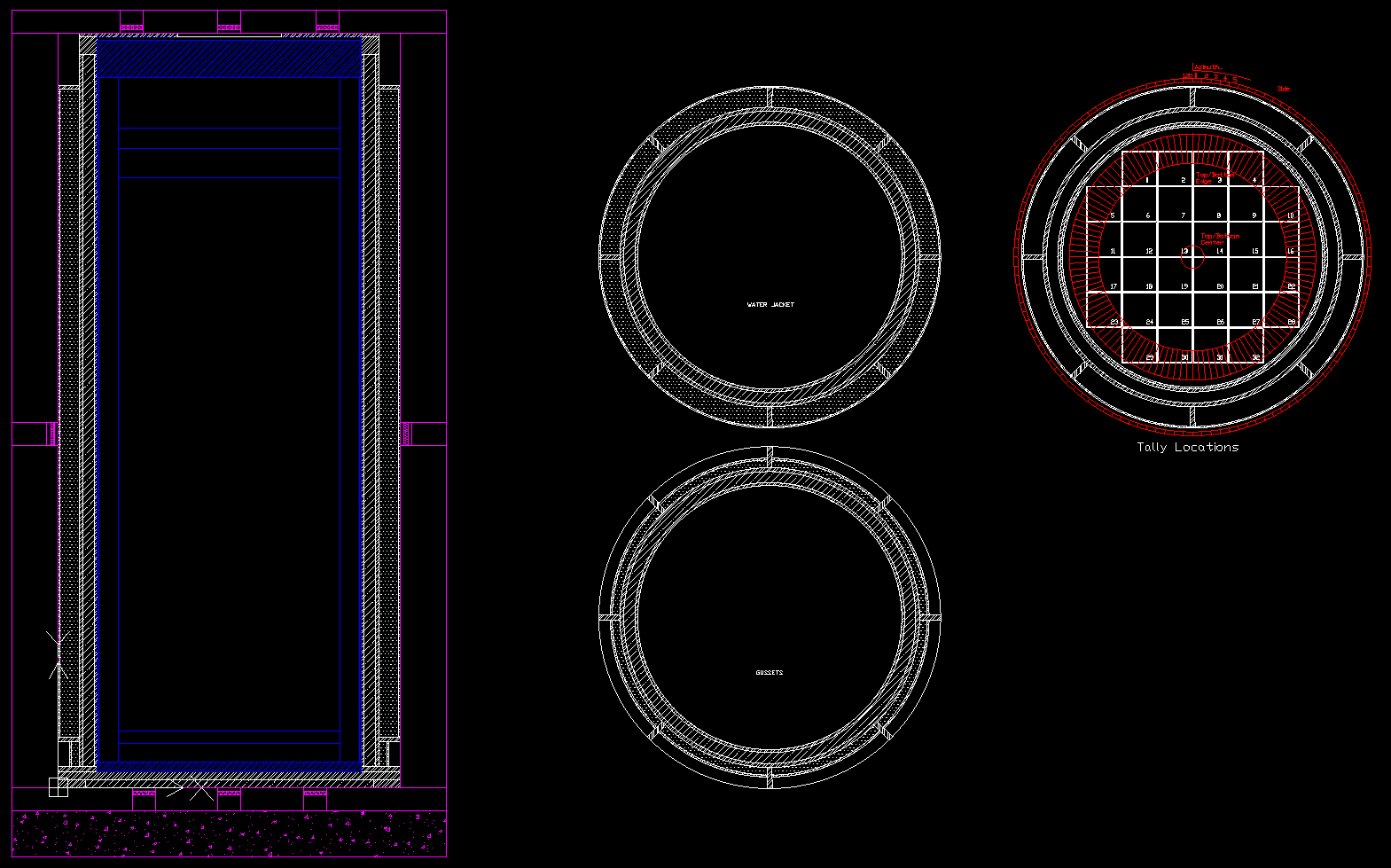

CAD model of dry storage cask.
Drawn in DraftSight, based on dimensions and materials from fabrication drawings. The drawing was used to build a 3D analytic model in the MCNP particle transport code, which was used to compute neutron and gamma dose rates.
Image copyright TransWare Enterprises Inc. Used with permission.
